Flexible economical transformer from 40W-1000W

The smart film common power supply(PJ-C) mainly willpower grid AC220\110V interchange Current, converted to smart glass smart film dedicated power supply voltage(AC48\60V); Rated output power have 40W,50W,100W,200W etc and other specifications.

Input voltage:AC220V\110V Output voltage:AC48V60V Power:40\50\100\200W

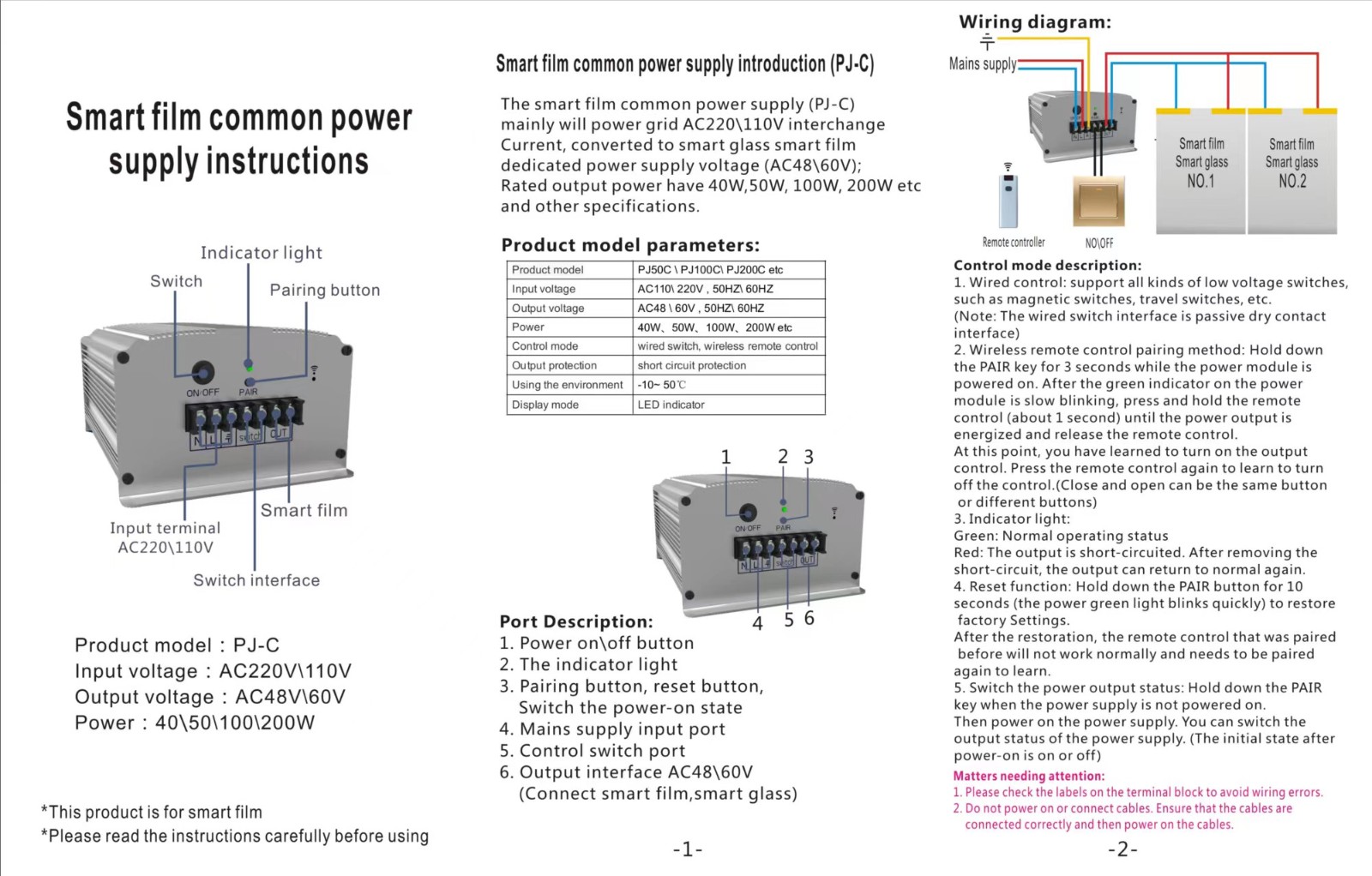

Control mode description; 1.Wired control:support all kinds oflow voltage switches,such as magnetic switches, trave switches,etc. (Note: The wired switch interface is passive dry contact interface) 2.Wireless remote contro pairing method Hold down the PAIR key for 3 seconds while the power module is powered on.After the greenindicator on the power module is slow blinking press and hold the remote control(about l second) unti the power output s energized and release the remote control. At this point,you have earned to turn on the output control.Press the remote control again tolearn to turn off the control.(Close and open can be the same button or different buttons)

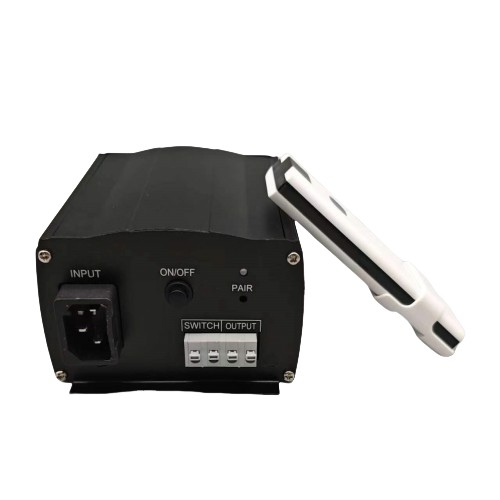

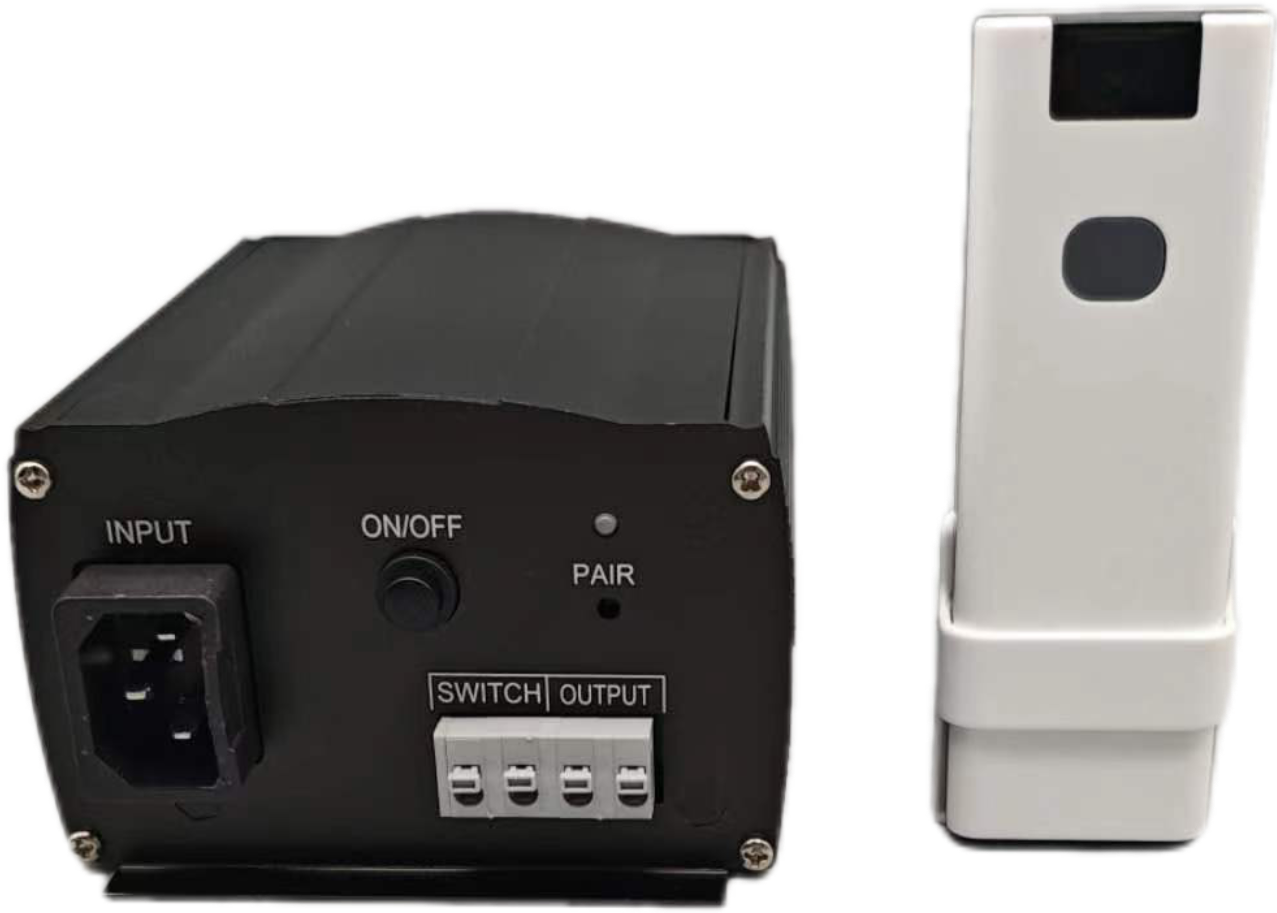

(default economical type without plug), if client want transformer with plug , we can add it , a little big expensive , please check the pictures below to see the difference of two version
