HOW TO INSTALL SMARTFILM

SMARTFILM INSTALLATION GUIDE

Tools needed:

Window scraper

Lint free cleaningcloth / dust free cloth /dust free paper

Nitrile protective gloves (non-powered)

Alcohol;

Silicon( suggest use smartfilm special silicon; non-acid based silicone; after tested no harm to smartfilm)

Soft edge squeegee

spray bottle glue gun, scraping cutter, ruler, windshield

washer fluid, adhesive tape, self-adhesive paper

Preparation

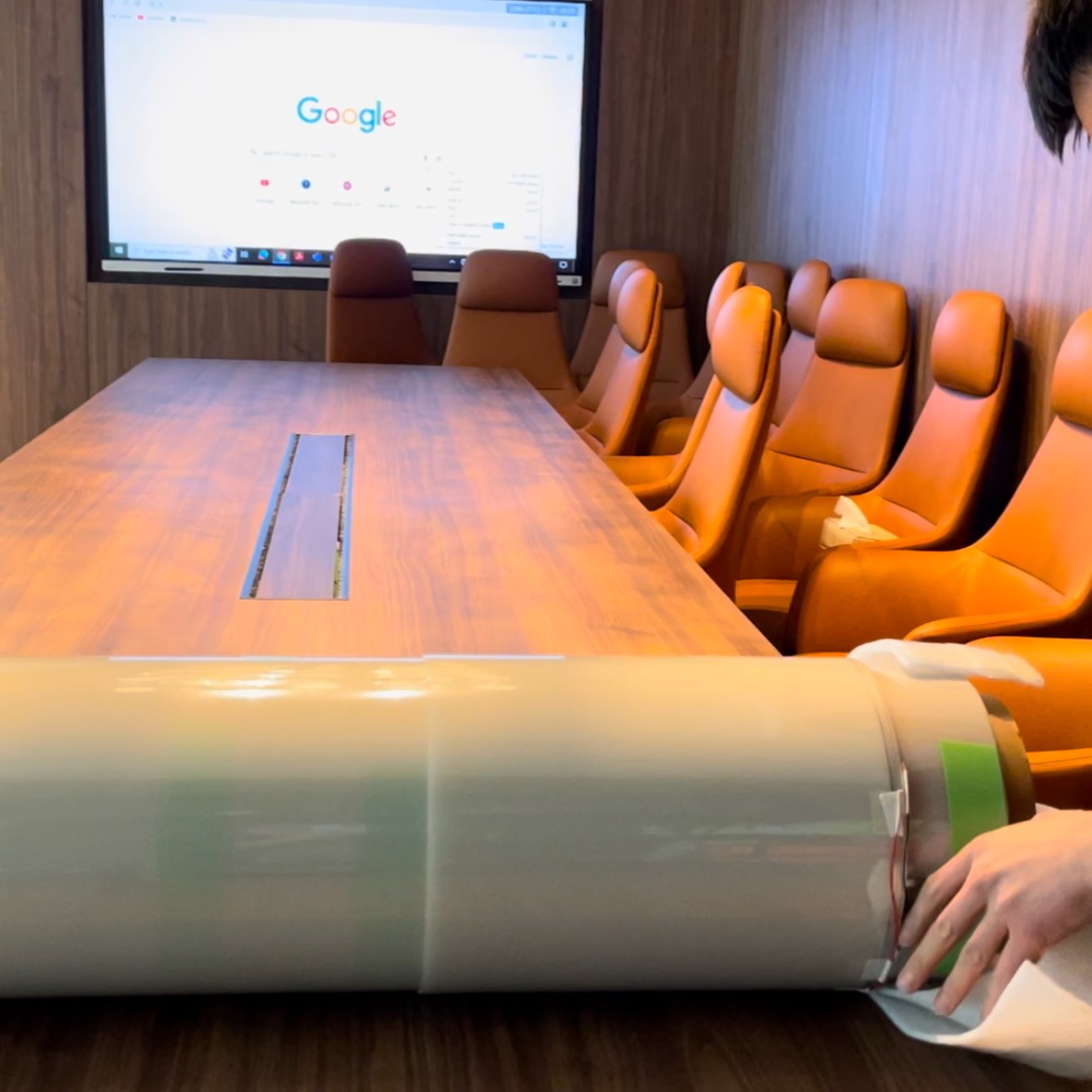

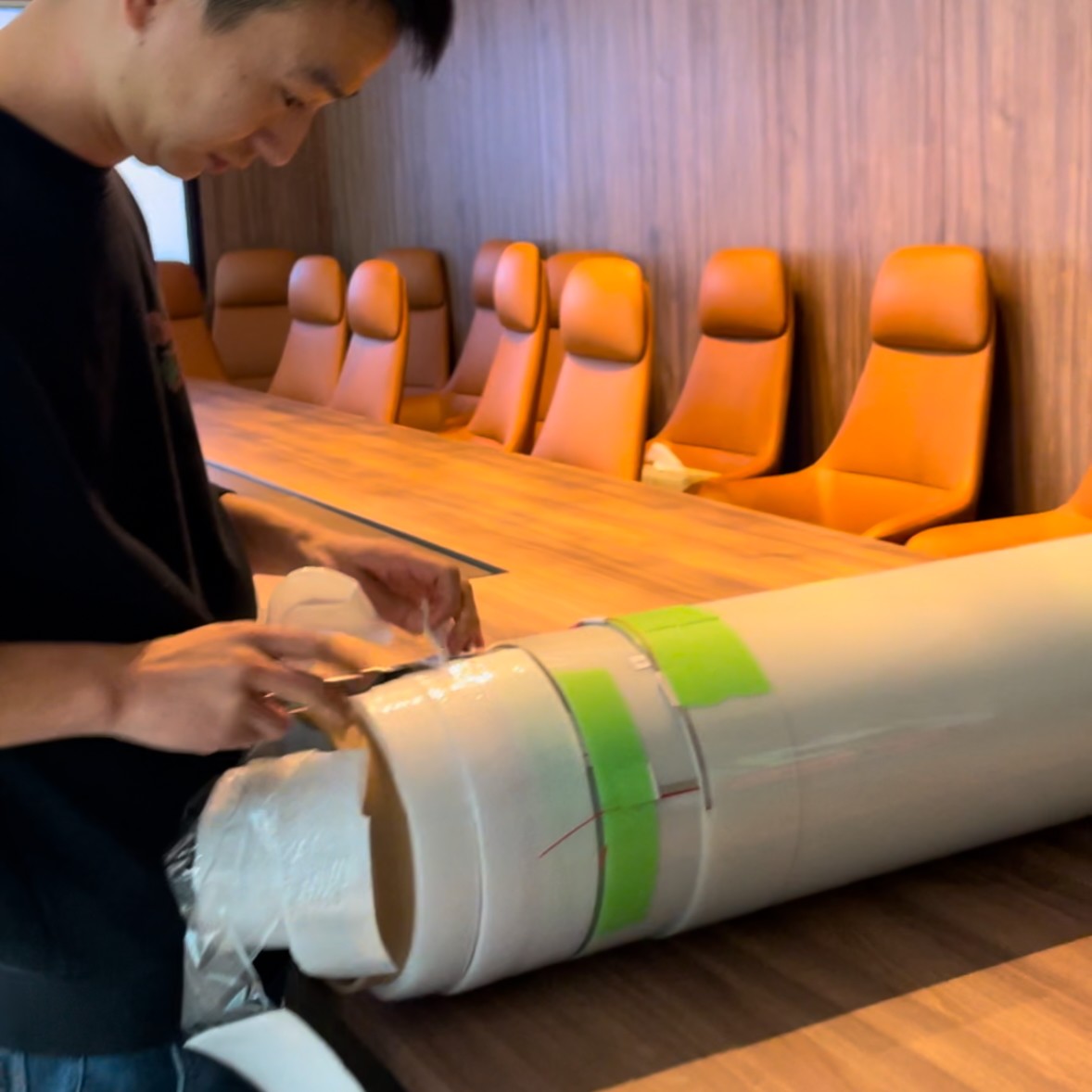

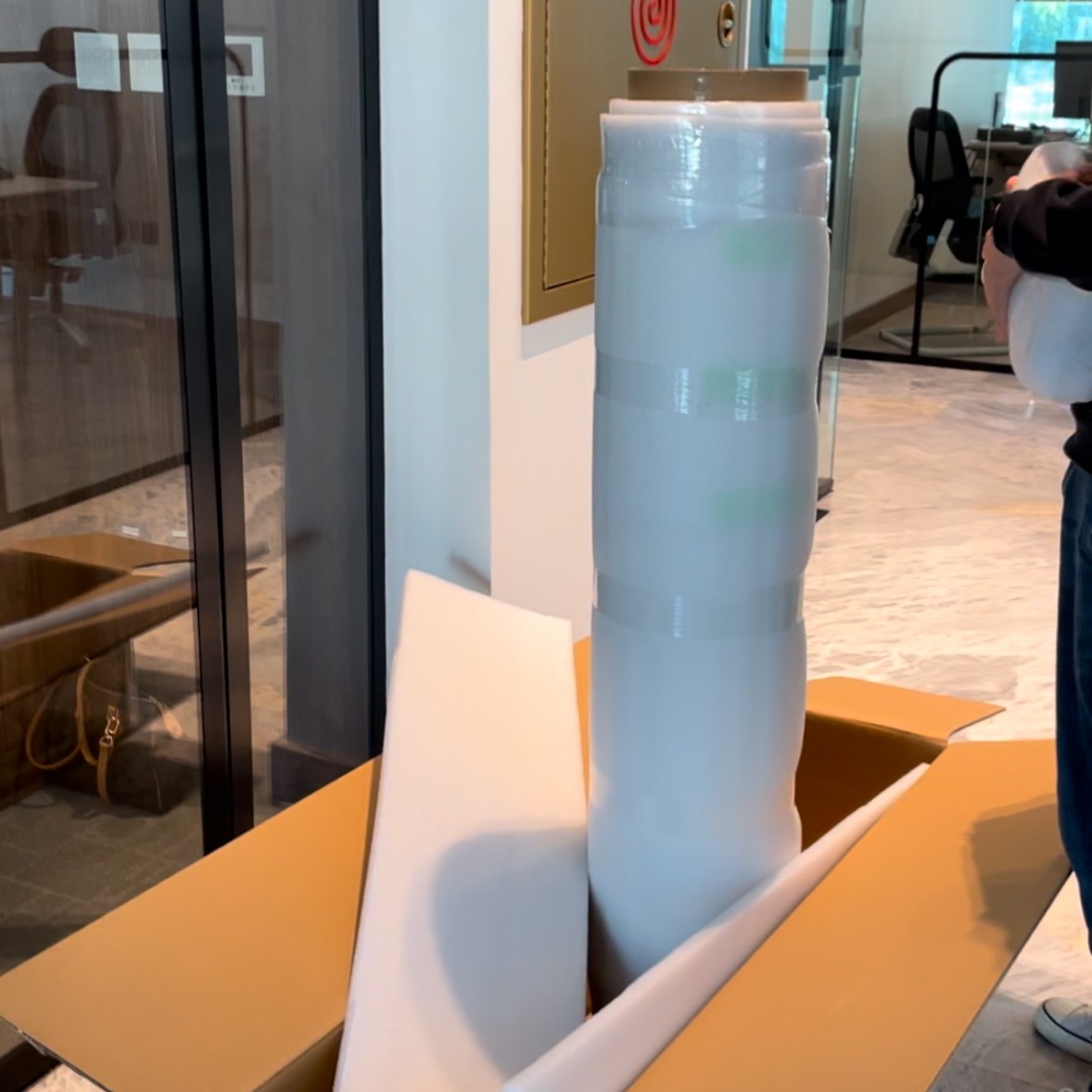

1,Take out the  smartfilm.

2,Detect the smartfilm in an energized state

3,Check smartfilm list or drawing with glass

size of the field measurement

Cleaning of installation environment and grooves

1,Clean carefully the ground and environment, spray mist in the air to remove dust,avoid the construction dust as far as possible.;

2,Clean carefully the grooves all around the installation position

Cleaning of glass

1,Spray the windshield washer fluid evenly on the installation position, make a preliminary cleaning of glass and strike off the windshield washer fluid.

2,Spray again the windshield washer fluid, use scraping cutter to scrap carefully the

surface and all edges of glass.

3,Scrap several times for removing the bumps, dirty points on glass surface and the glue residue on glass.

4,Clean the glass one or two times again according to step 1, make sure it is totally clean.

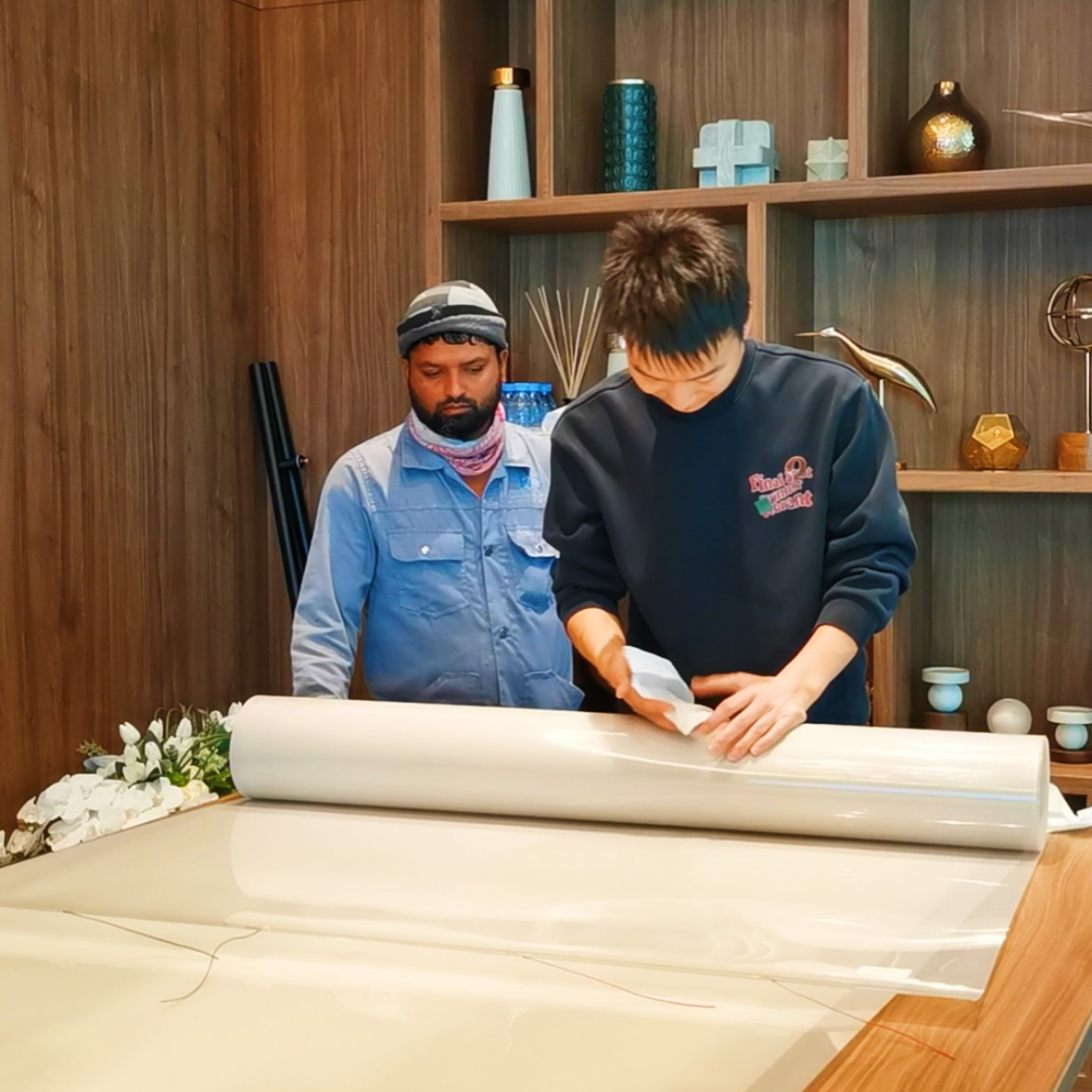

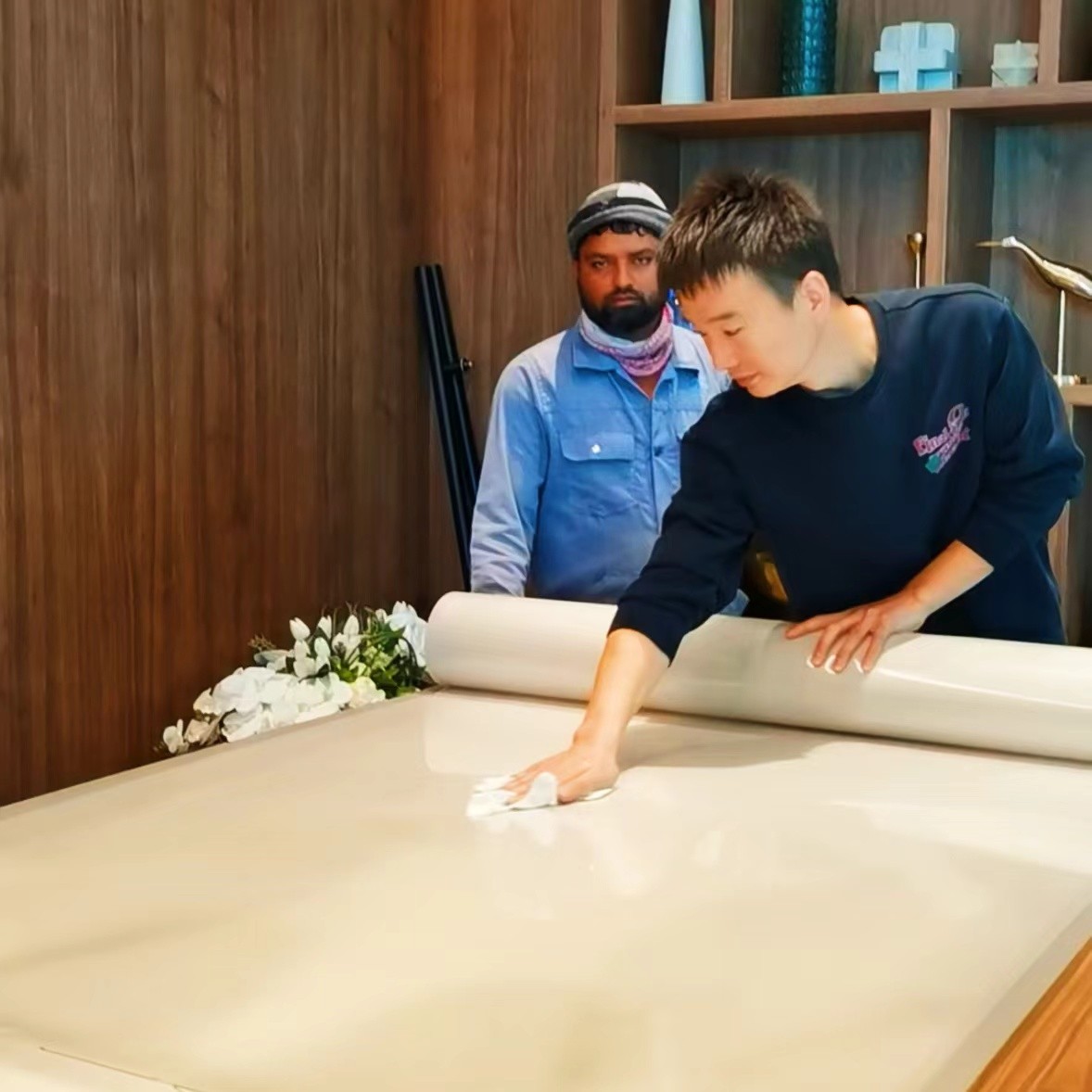

6 Wipe dry the glass surface with the cleaning cloth. Soak the cleaning cloth in alcohol, then clean the dust on adhesive side of smartfilm.

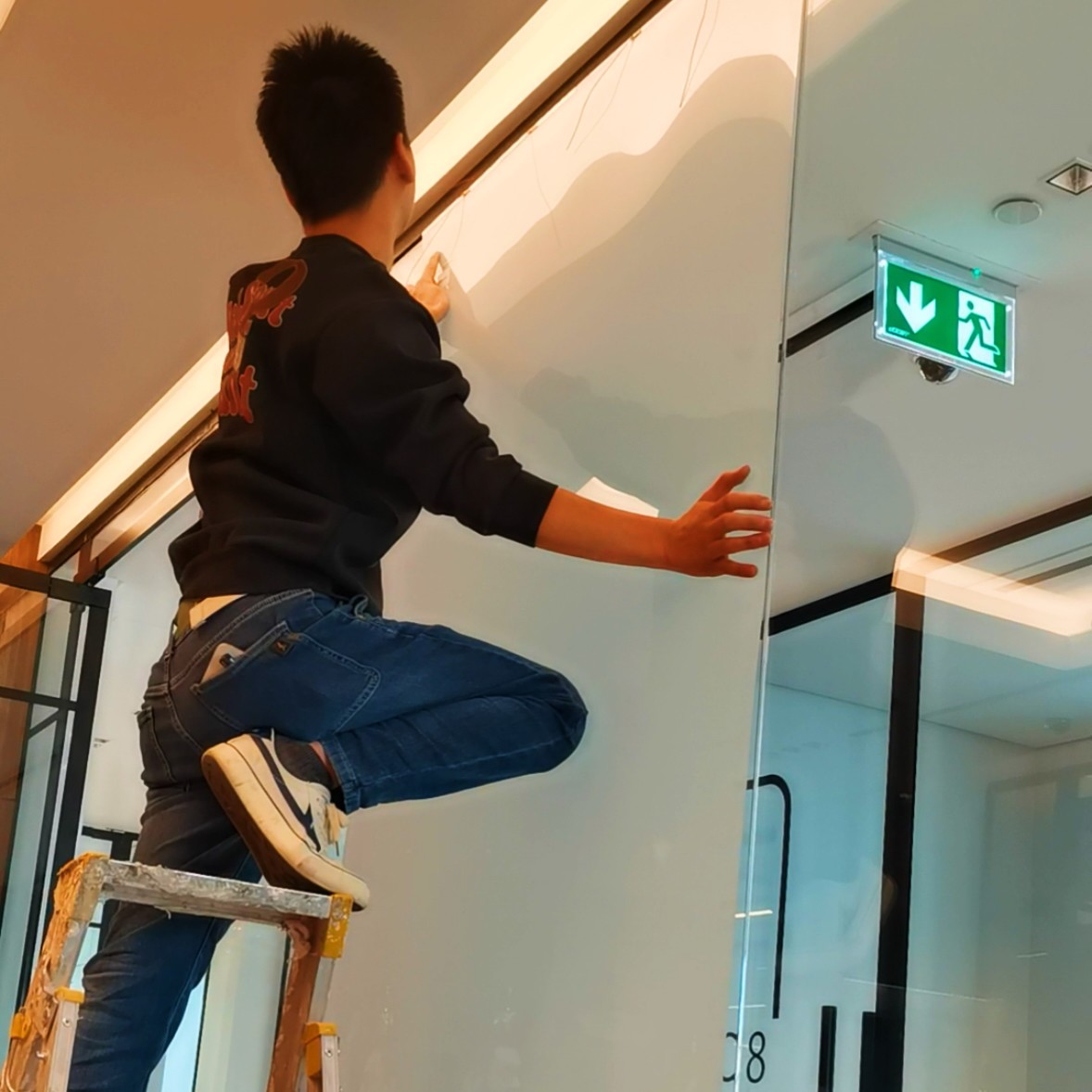

Stick the smartfilm on glass

1,Make sure the glass surface and surrounding environment have met the installation requirements of smartfilm before

the start.

2,Open the smartfilm vertically.

3,Put the film labeled with "FIRST STEP" on glass, pre-locate then fix it with adhesive tape

4,After confirming the position, tear off part of the release film from up to down along one side.

5,Remove the positioning tapes, start to stick the film after Remove the positioning

tapes, start to stick the film after verifying again the position of the film

6,Stick the smartfilm on glass with scraper.

7,Removing the hard coated film and sticking the smartfilm have to proceed simultaneously.

8,Mark the impurities during the process.

9,Remove the impurities with blade, adhesive tape, etc.

10,Positive film process.

Test with power-on

Power-Off.

Power-On.

Sealing glue

Seal the edges of smartfilm after

installation.(use smartfilm special silicon !!!)

ATTENTION :

PLEASE TEST ALL THE SHEET PANELS ONCE RECEIVE THE FILM CHECK IF ALL PANELS WORKS GOOD CONDITION ;

CHECK THE FILM IF ANY DEFECT AND REPORT TO THE SALESPERSON IMMEDIATELY AND FIND A SOLUTION;

AFTER INSTALLATION IT’S HARD TO FIND THE REAL REASON CAUSE THE FILM STOP WORK

MAINTENANCE

Do not move the glass within 3 days after installation of smartfilm.

Do not clean the filmed glass with water within 15 days after installation.

Do not use suckers or adhesive to hang/fix/stick/decorate any object on the filmed

glass.

Please spray the anhydrous alcohol or acetone evenly on film surface, then use clean

and soft cotton or cleaning cloth to dry the glass gently. Can also use clean and soft

cloth dipped into anhydrous alcohol or acetone to scrub directly the stains.

Same as step 4, please use clean and soft cotton cloth dipped into acetone to scrub

gently the contaminated area, in order to remove the glue residue from the installation

process.

Do not use any hard grater, brush, wipe cloth containing grains of sand, etc, to clean

the filmed glass
