SPD SMART WINDOW

Why do we need SPD Smart Window?

Increasing the area and utilization of glass(window)

Expanding use of glass to replace conventional exterior wallsin buildings and automobiles

Increasing the significance of securing views and sunlightthrough windows and creating a pleasant indoor environment

Reg. Compliance & Response to Eco-Friendly Demands

Cooling energy consumption for building and cost ofelectricity is on the increase due to global warming

Growing importance of cooling energy efficiency due to thereinforcement of zero energy policy

Increasing demand for Comfortable Indoor EnvironmentHigher desire for creating a comfortable working/livingspace

Increasing need for blocking sunlight and solar heat enteringthe room while maintaining natural light and view to theoutside

(Conventional shades such as curtains and blinds blocknatural light as well as view simultaneously)

What are the benefits of SPD Smart Window?

Natural Light/View : Yes

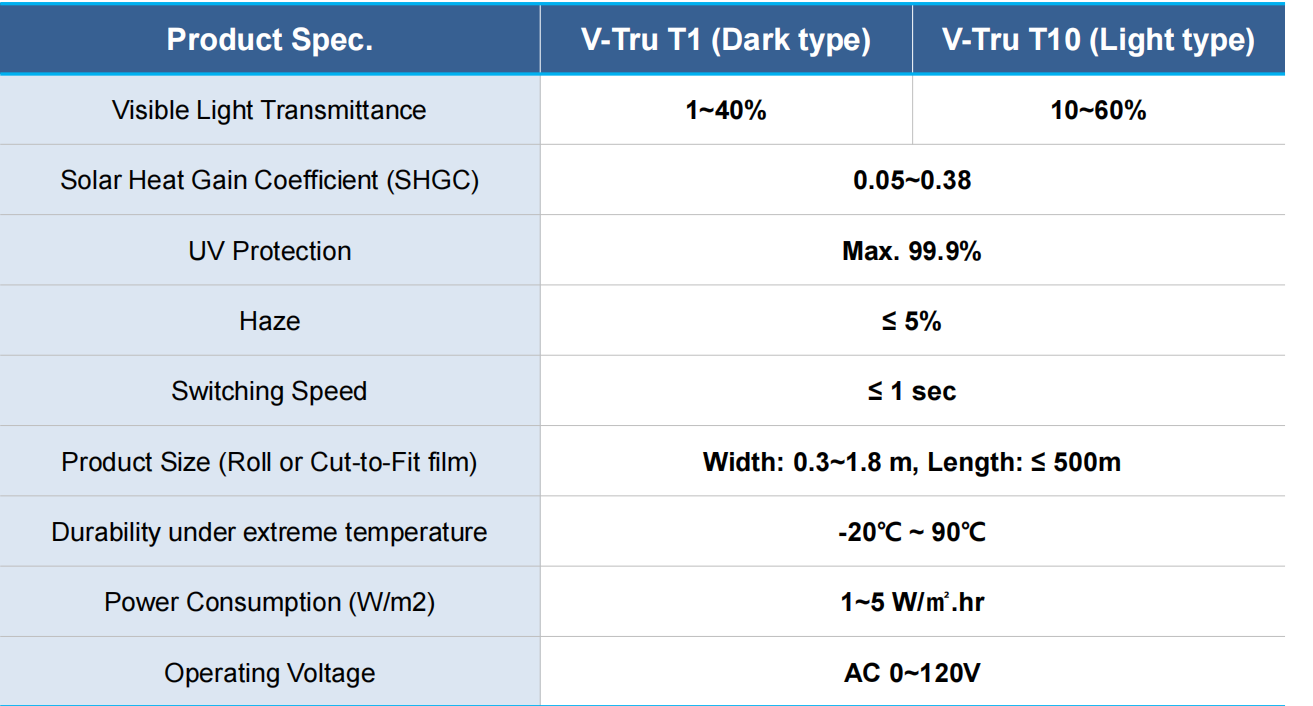

Light Transmittance: adjustable between 1~60%

Smart window Bring Comfort to your Life

Reducing building energy consumption by more than 20%

(saves more than 40% ofcooling and lighting energy)

Increasing the value of buildings and automobiles

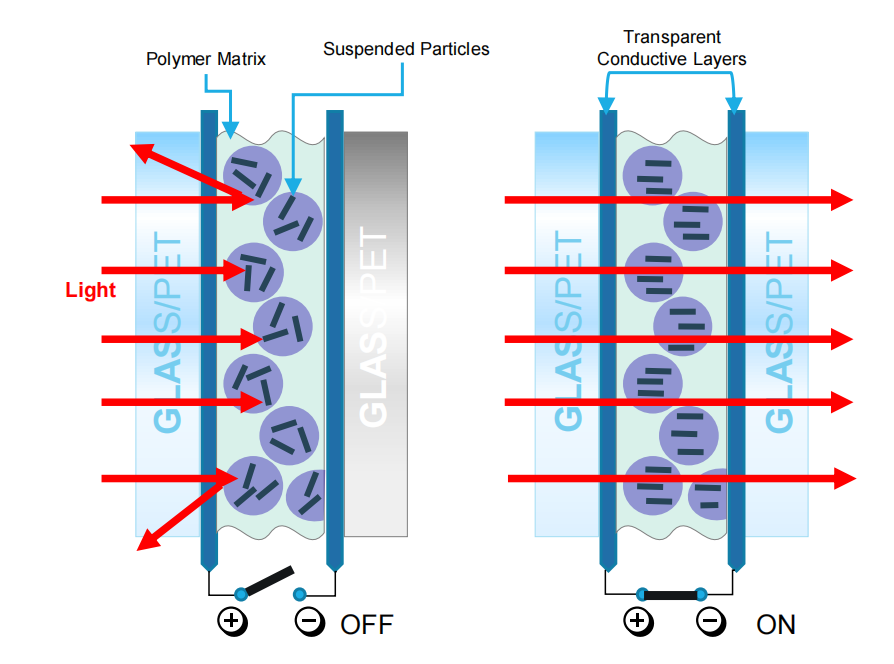

How does SPD Smart Window work?

The principle of “freely controlling the transmittance” by applyingelectro nanoparticles between conductive films, allowing light to passthrough when electricity is applied, and changing the arrangement ofparticles based on voltage level

The principle of “freely controlling the transmittance” by applying  electro nanoparticles between conductive films, allowing light to pass  through when electricity is applied, and changing the arrangement of  particles based on voltage level

Where can be SPD Smart Window applied?

① Automotive Sunroof / Window ② Building Window (e.g. commercial buildings, hospitals, airports) ③ Light Shutter for Display (for T-OLED, Projection) ④ Train, Marine, Aviation Sectors (e.g. train passenger window)

SPD Smart Window: ① Automotive Sunroof
