REVERSE PNLC smartfilm

迈向智能窗口时代，“REVERSE PNLC”用光的魔力创造一个崭新的空间

液晶调光膜实现了薄膜的“透明”“不透明”和“作为投影屏幕”的不同作用，REVERSE 是一种超薄液晶薄膜，它是在PDLC 的液晶技术成果的基础上，通过与显示相关的业务合作开发而成的。

通过开关电源可以将薄膜的状态从透明变成不透明， 反之亦然。

这一创新产品被广泛应用于各种应用中，比如作为百叶窗或者窗帘的替代品，或者作为数字标牌屏幕； 我们的这款产品特点是，正向型的薄膜在电源打开时切换为透明，而反向膜在电源关闭时切换为透明

Moving towards the era of smart windows, "REVERSE PNLC" uses the magic of light to create a new space

The liquid crystal smartfilm realizes the different functions of the film as "transparent", "opaque" and "as a projection screen". REVERSE is an ultra-thin liquid crystal film. It is based on the achievements of PDLC's liquid crystal technology and through display-related Developed through business cooperation.

The state of the film can be changed from transparent to opaque and vice versa by switching the power supply on and off.

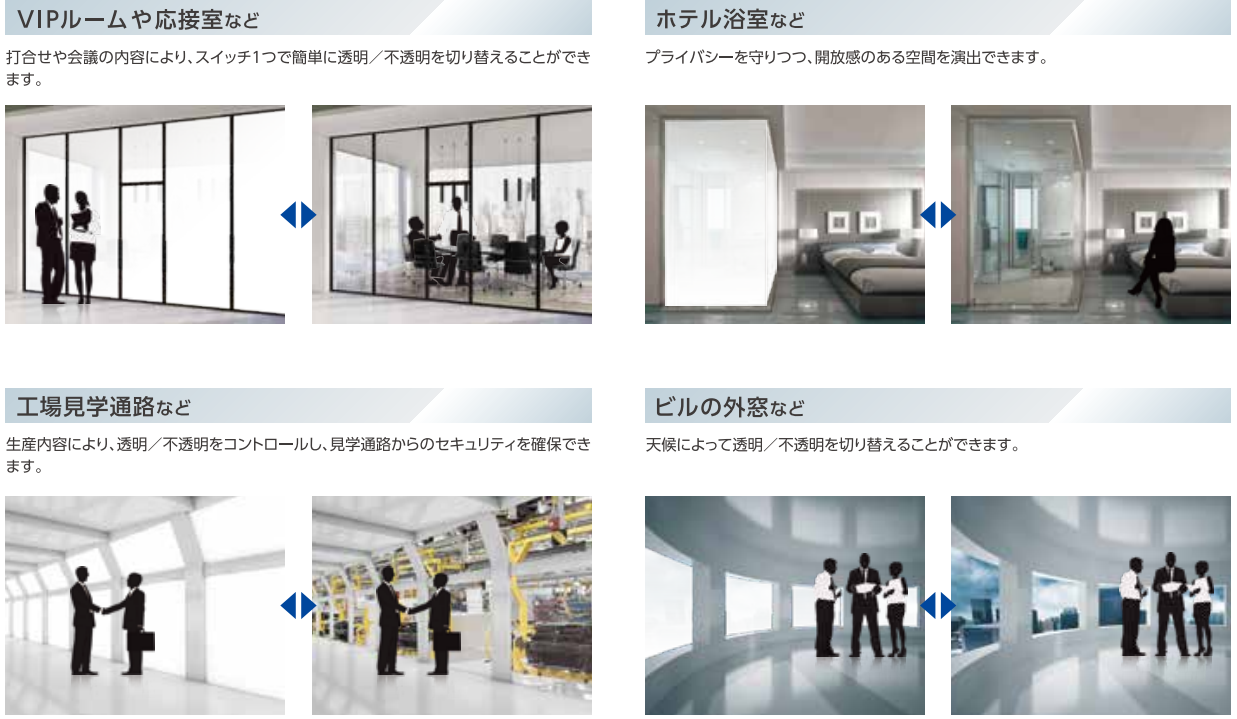

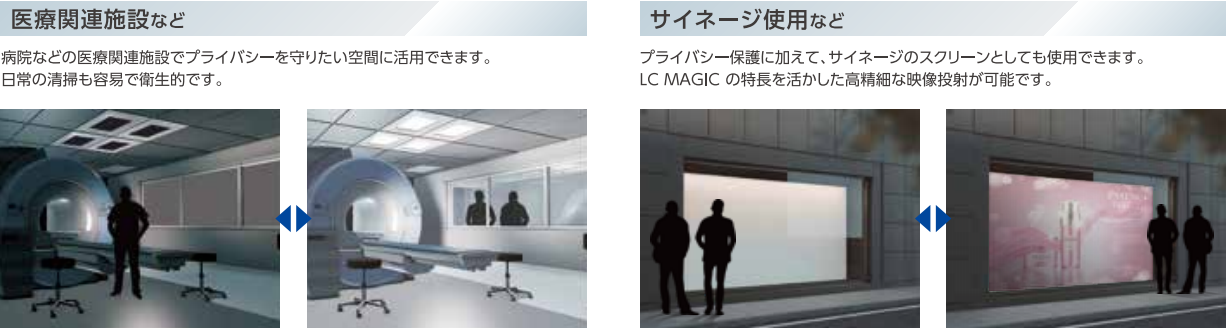

This innovative product is used in a wide range of applications, such as as a replacement for blinds or curtains, or as a digital signage screen; our product features a forward-facing film that switches to transparent when the power is turned on, while Reverse film switches to transparent when power is turned off

特点：节能

1，可以提供更高的透明度和完全的隐私；实现了93%的总透光率和98%的雾化度，

2，可以灵活处理（设计灵活性）通过在模块化之前进行适当的电气工艺设计，REVERSE 可以自由地加工成您想要的理想形状

3，超薄膜使其更容易贴合于曲面或者现有玻璃上

4，可以用作投影屏幕， 随着我们PDLC 的光学发展，不透明状态可以显示高质量，高清晰度的图像， 比如4K

5，极度宽的视角。 REVERSE PNLC 在水平和垂直方向上的视角可以达到160度

6，可以按照卷材生产， 每卷装运单位50米，宽度1500mm 和1200mm

7，由日本独家技术生产

Features: Energy saving

1. It can provide higher transparency and complete privacy; achieving a total light transmittance of 93% and a fogging degree of 98%,

2. It can be processed flexibly (design flexibility). With proper electrical process design before modularization, REVERSE PNLC can be freely processed into the ideal shape you want.

3. The ultra-thin film makes it easier to fit on curved surfaces or existing glass.

4. It can be used as a projection screen. With the optical development of our PDLC, the opaque state can display high-quality, high-definition images, such as 4K

5. Extremely wide viewing angle. REVERSE PNLC has a viewing angle of up to 160 degrees in both horizontal and vertical directions

6. Can be produced in rolls, each roll shipping unit is 50 meters, width 1500mm and 1200mm

7. Produced by Japan’s exclusive technology

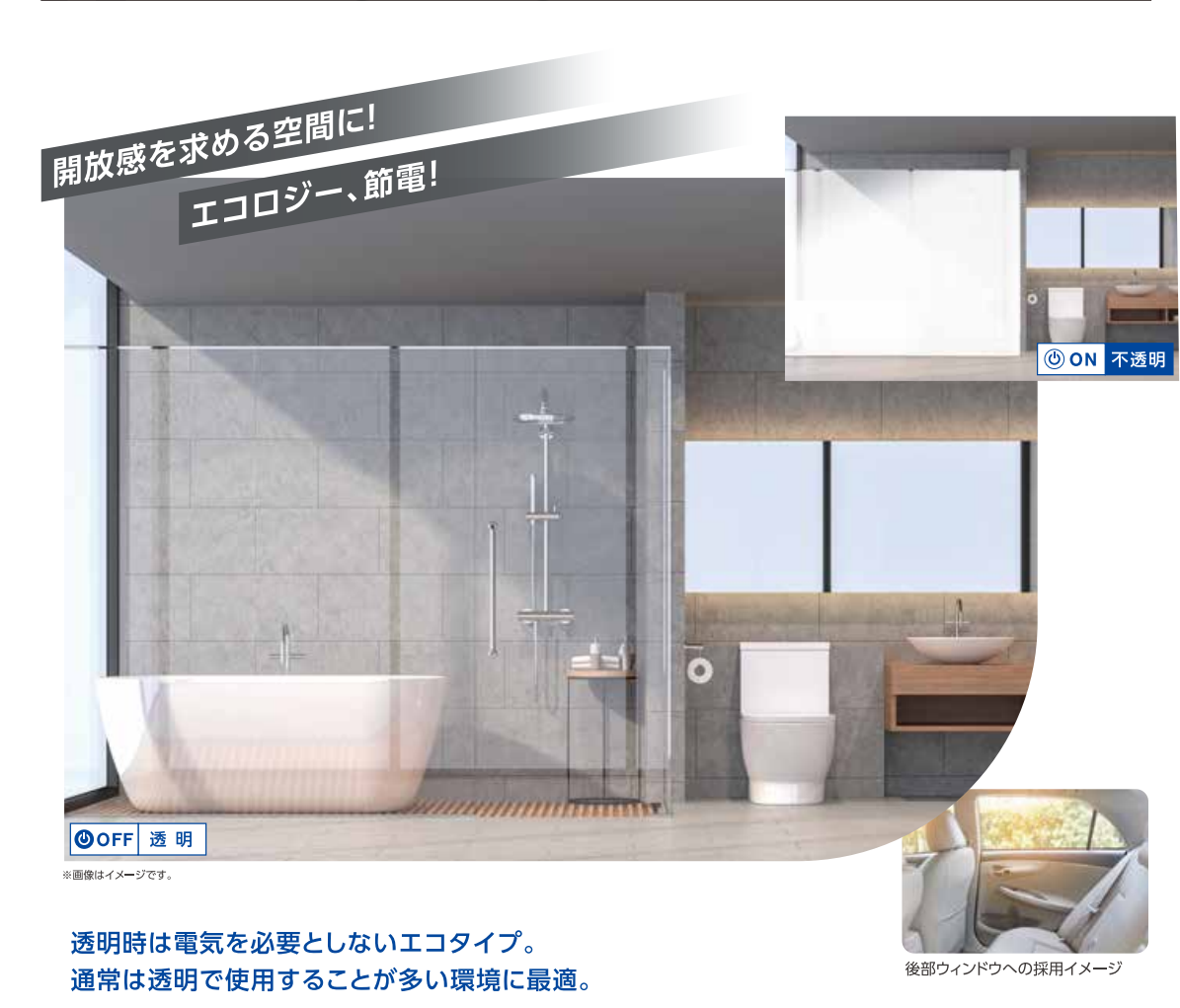

适用于具有开放感的环境，节能高效；经济实惠，这种透明的状态不需要通电就可以得到， 适用于通常需要清晰状态的环境。即使停电也能看到，因为在断电的情况下， 薄膜的状态是透明的， 所以视野上依旧是安全的。

停电的时候透明， 不受影响

极高的透明度

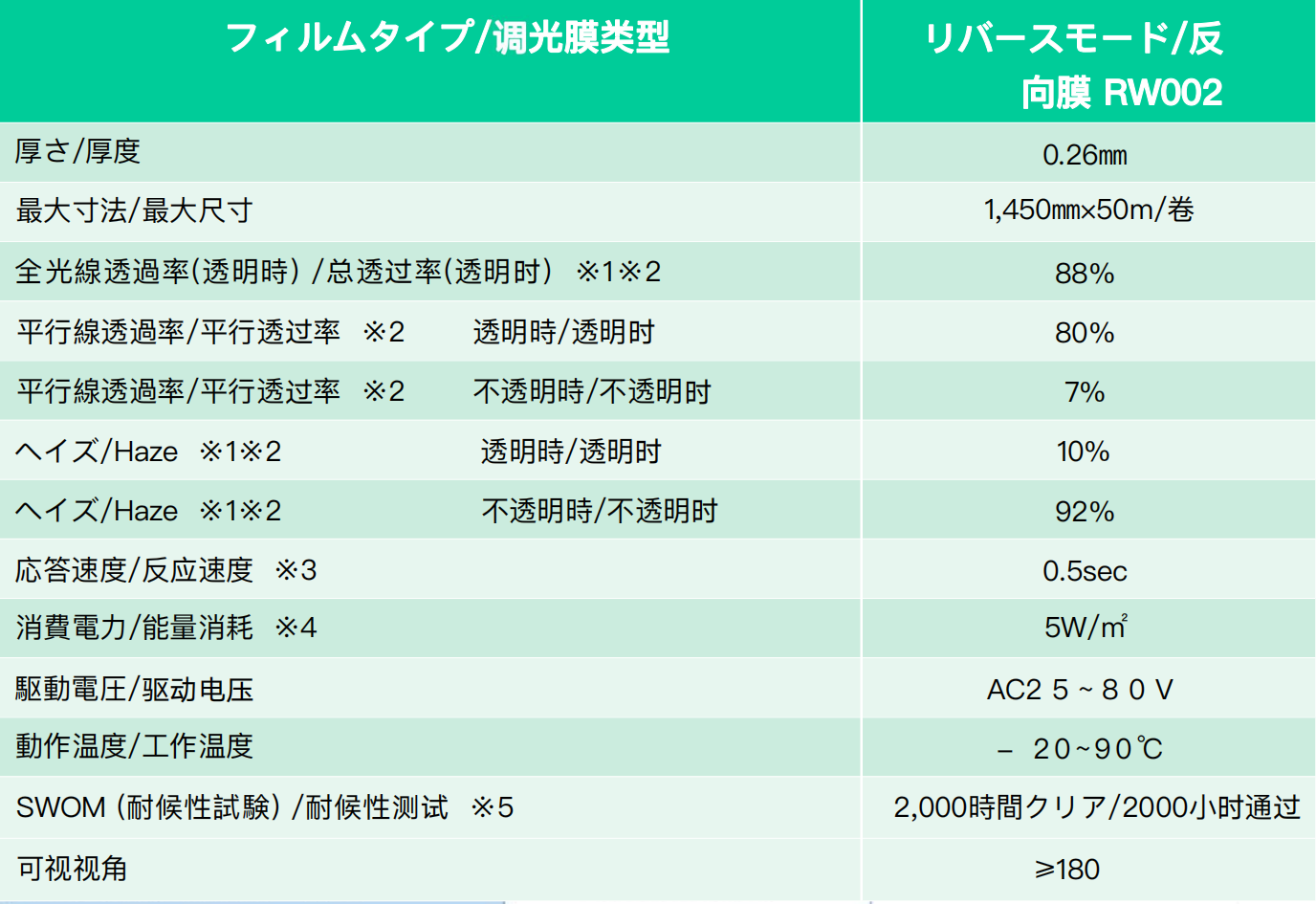

厚度：0.26mm

MAX size :1450mmX 50m one roll

透光度93%

反应速度：0.5 sec

消耗电量：5W/m2

驱动电压：AC25/80V

工作温度：-20 度到90 度

SWOM 耐候性实验/耐候性测试  20000 小时测试通过

可视角度大于180 度

1，基于JISK 7361-1 以及 JIS K 7136 的测量值， 不保证其它测量值

2，正常室温下的测量值

3，这是调光膜在室温下的反应速度， 不包括电源的启动，反应时间

4，在室温，一平方米的面积下，以最佳电压（方波40Vms 60Hz）的测量值，是调光膜的功耗，不包括电源等的功耗，

5，SWOM （风化实验）是基于JIS A 5759 实施检测的，使用了此公司指定的粘合剂跟端面密封剂， 满足了此公司的要求规格。

Suitable for environments with a sense of openness, energy-saving and efficient; economical and affordable. This transparent state can be obtained without powering on, and is suitable for environments that usually require a clear state. It can be seen even if there is a power outage, because the film is transparent when the power is out, so the view is still safe.

Transparent and unaffected during power outage

Extremely high transparency

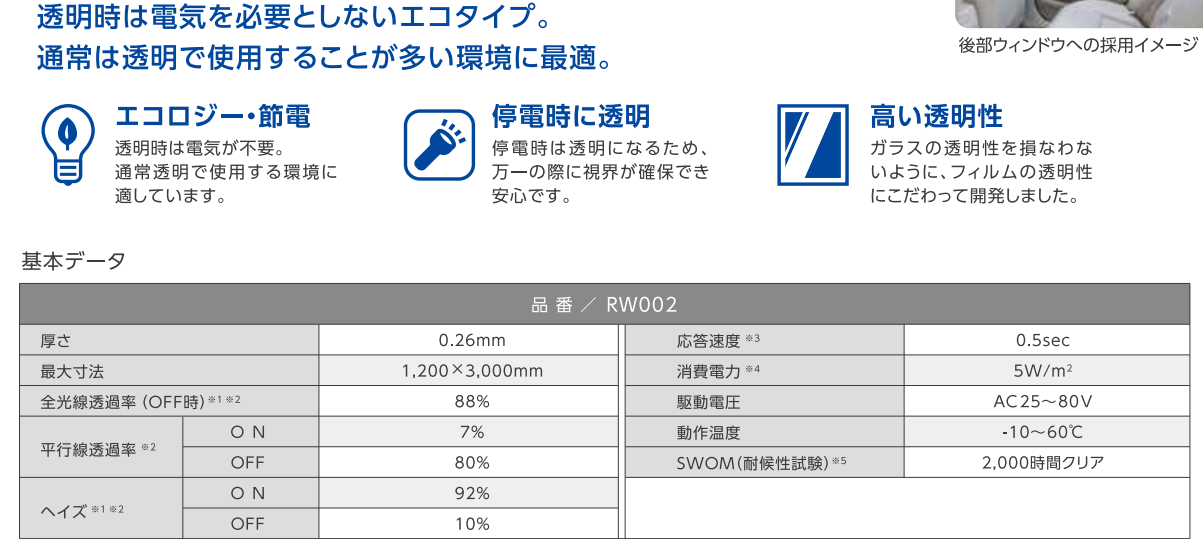

Thickness: 0.26mm

MAX size:1450mmX 50m one roll

Transparency 93%

Response speed: 0.5 sec

Power consumption: 5W/m2

Driving voltage: AC25/80V

Working temperature: -20 degrees to 90 degrees

SWOM weather resistance experiment/weather resistance test 20000 hours test passed

Viewing angle greater than 180 degrees

1. Measurement values based on JISK 7361-1 and JIS K 7136. Other measurement values are not guaranteed.

2. Measured values at normal room temperature

3. This is the response speed of the dimming film at room temperature, excluding power startup and response time.

4. At room temperature and an area of one square meter, the measured value at the optimal voltage (square wave 40Vms 60Hz) is the power consumption of the dimmable film, excluding the power consumption of the power supply, etc.

5. The SWOM (weathering test) is tested based on JIS A 5759. The adhesive and end sealant specified by the company are used, which meets the company's requirements and specifications.
